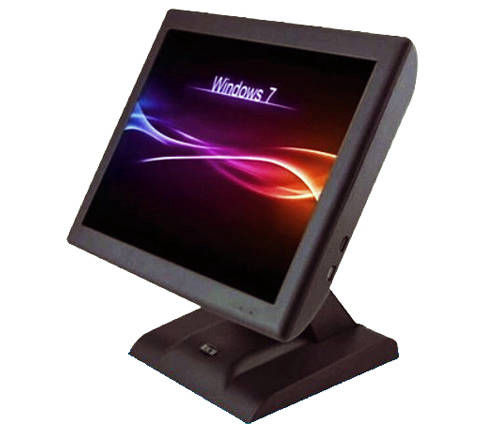

SamPos LV-5800

Gallery

Target Market


LV-5800 is High efficient touch screen. Using top quality industrial motherboard. Excellent personalized design adapt to any environment. LV-5800 Modular design & convenient maintenance.

Best Features


ADVANTAGES:
- High efficient touch screen seek .
- Using top quality industrial motherboard.
- 15-inch TFT LCD Monitor, 1024 x 768,32bit colour.
- Five line resistance touch screen, the click life can reach 3.5 million times.
- Excellent personalized design adapt to any environment.
- Modular design & convenient maintenance.

Basic Specifications


LV-5800:
MAIN BOARD (ATOM):
Intel Atom-525
MAIN BOARD (CELERON):
Intel Celeron-J1900

PROCESSOR:
ATOM: 1.8 Ghz
CELERON: 2.0 Ghz

MEMORY:
ATOM: 2 GB
CELERON: 4 GB

GRAPHICAL DISPLAY:
Integrated Intel GMA3950, Support DirectX9.0

OUTER I/O INTERFACE:
- RJ-45 LAN Port
- USB 2.0 x 4
- Serial Port x 1
- DC Power Port x 1

DISPLAY:
VFD 2 lines customer display

VIDEO MEMORY:
Max Support 224MB Dynamic Video Memory

HDD:
500 GB

LCD:
15" TFT LCD

BRIGHTNESS:
250cd/m2

RESOLUTION:
1024x768 (max)

TOUCH SCREEN:
Top quality five line resistance touch screen

VISIBLE ANGLE:
Horizontal: 140, Vertical: 130

OPERATION TEMPERATURE:
0°C to 40°C

STORAGE TEMPERATURE:
-20°C to 40°C

PACKAGING SIZE:
418 x 418 x 317 cm

NET WEIGHT:
7.8 KG

GROSS WEIGHT:
9 KG

POWER:
DC 12V Outer Adapter Input
